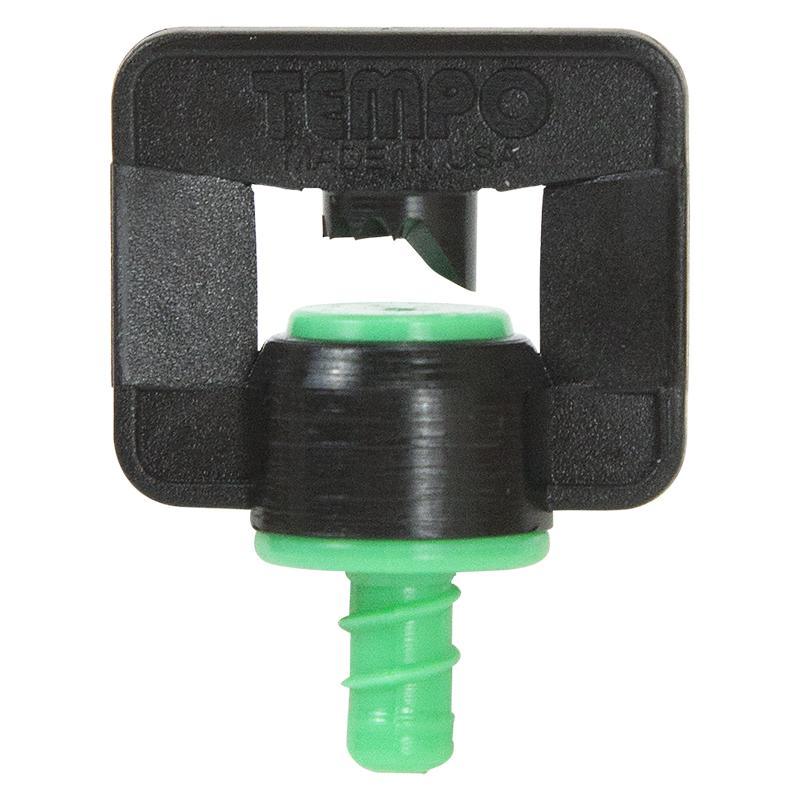

Agri-Jet Micro Sprinkler - C Pattern Green

Agri-Jets are used for ground covers, under trees, and in areas that need moderate water coverage.

• At 10 psi, the sprayer will deliver 17.6 gph with a 17' spray diameter.
• 180 degree pattern
• The Agri-Jet provides stream type spray.
• Connect it directly into 1/4" poly tubing held by an irrigation stake.
• Use with IRR609 (irrigation stake), 1/4" poly tubing and IRC210 (1/4" barbed coupler).
• Quick lock connection installs with a quarter turn onto riser
• Large opening to prevent clogging
• On piece construction eliminates cap pop-outs

Shop compatible drip sprinklers and sprayers, and use our drip irrigation resources for planning and installation help.

Layout guidance: Use the Agri-Jet Micro Sprinkler - C Pattern Green where the listed C-pattern coverage matches the planting area, then verify spacing under actual pressure and wind conditions. Install it with the compatible tubing, barb, stake, or riser shown for the system. Flush the line before final connection and inspect the outlet periodically for mineral or sediment buildup. Adjust run time to soil texture, crop needs, weather, and observed infiltration rather than relying on a universal schedule.

See our drip irrigation resources for zone planning and maintenance.
