An orchard irrigation layout should deliver measurable water to the active root zones of fruit trees without forcing every tree onto one universal setup or schedule. Start by measuring the source, group compatible trees into zones, choose outlets that fit the soil and terrain, and plan how the wetted area will expand as young trees mature.
This application guide builds on Choosing the Right Irrigation for Your Garden and Proper Watering. It provides a shared design framework for home orchards and small plantings; use the existing Grow Organic crop-care guides for species-specific observations and seasonal decisions.
Measure source pressure and flow first
A drawing cannot show whether the water source can run the planned outlets. Measure both pressure and flow at the point where the orchard connects.
Pressure is measured in pounds per square inch (PSI). Static pressure is measured when no water is flowing. Operating pressure, sometimes called dynamic pressure, is measured while water moves at the intended rate. Operating pressure is the more useful design value because valves, filters, regulators, fittings, tubing, elevation, and friction all affect what reaches an operating zone.
A hose-thread water-pressure gauge can help compare static and operating readings. Place the gauge where the reading answers a specific question, and stay within its published range.
Measure flow with a container of known volume:
Source GPM = container gallons ÷ fill time in minutes
For example, filling a 5-gallon bucket in 60 seconds equals 5 gallons per minute (GPM). Repeat the test under the conditions in which irrigation will run. Another household or farm use operating at the same time may change the result.
Do not plan a zone to use the source’s absolute measured limit. Allow practical capacity for pressure loss and supply variation, and confirm the operating ranges and flow limits of the backflow device where applicable, filter, regulator, valves, timer, fittings, and tubing.
Divide the orchard into compatible zones
A zone is a group of outlets that operates from the same valve or controller program. Separate trees when a shared runtime would make management difficult. Useful reasons include:
- Newly planted trees versus established trees with wider root systems
- Materially different crop water requirements or growth stages
- Sandy, loamy, compacted, or heavy-soil areas with different infiltration and drainage
- Slopes, elevation changes, or long runs that affect pressure
- Hot, windy, reflected-heat, shaded, or otherwise distinct exposures
- Sections supplied by different pipe sizes or source conditions
A separate zone is not required for every tree. The goal is to avoid grouping trees that cannot be managed reasonably with the same operating window and outlet strategy.
Choose an outlet strategy
| Method | Where it may fit | Tradeoffs to check |
|---|---|---|
| Individual drip emitters | Defined delivery points at individual trees; layouts that need easy outlet additions or moves | Each outlet wets a limited area. Check flow at representative trees and add or reposition outlets as root systems expand. |
| Pressure-compensating emitters | Layouts where approved operating pressure varies within the emitter’s documented range | They can help stabilize rated flow, but cannot correct inadequate inlet pressure, excessive losses, clogs, or operation outside specifications. |
| Emitterline or dripline | Rows, rings, or loops where repeated outlet spacing creates a broader pattern | Emitter spacing, flow per outlet, run length, pressure range, filtration, and total demand must all fit the design. |
| Micro-sprayers or microsprinklers | Sites where a wider wetted pattern is useful and soil can accept the application rate | Wind, overspray, evaporation, weed growth, trunk wetting, slope, and surface runoff need observation. |
Browse the live Emitters, Emitterline and Fittings, and Sprinklers and Sprayers collections only after identifying the desired wetting pattern. Verify current product specifications rather than selecting by category name alone.
What pressure-compensating means in practice
A pressure-compensating emitter is designed to hold its discharge closer to a stated rate across a documented pressure range. One current example, the 1-GPH Toro pressure-compensating emitter, is listed at 1 gallon per hour (GPH) from 15 to 50 PSI. That rating is approximate in the field and depends on correct installation, clean water, adequate filtration, operation within specifications, and a functioning system.
Place outlets for the root zone—not at one fixed distance
Newly planted trees have a limited root system, so the initial wetting pattern must reach the roots that currently exist. Outlets placed only for the eventual mature canopy may miss much of a young tree’s root zone. Conversely, a layout left unchanged beside the original planting hole may wet too little soil as the tree grows.
Place outlets where water can move through soil occupied by active roots. The useful distance from the trunk varies with tree age, nursery root ball, soil, rootstock, canopy, irrigation method, and climate. Do not treat watering directly against the trunk as a universal recommendation. Observe where the system wets the soil and avoid leaving the trunk or crown persistently wet when the crop and site do not call for it.
Plan for expansion:
- Add individual outlets and distribute them around a wider portion of the root zone.
- Move existing outlets outward while preserving delivery to active roots during the transition.

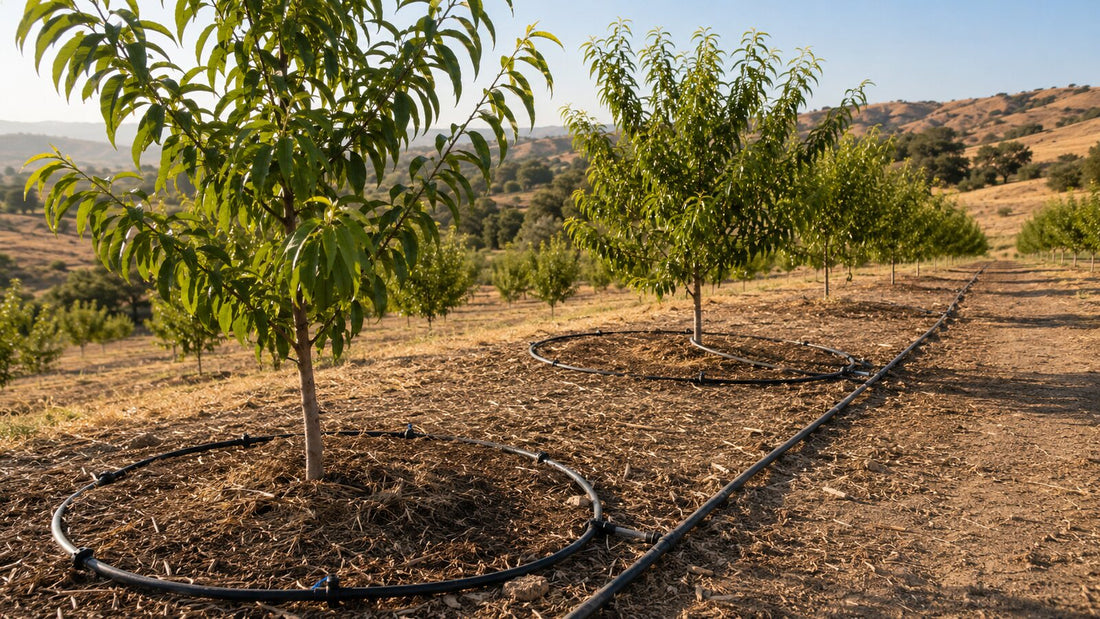

- Expand a loop of emitterline or add another loop where the product’s run-length and pressure limits permit.
- Change the wetted diameter or number of micro-sprayers only after checking zone demand and infiltration.
Several delivery points or a loop can spread water more broadly than one point, but more outlets also increase zone demand. Recalculate before expanding.
Account for soil, slope, run length, and elevation
Soil texture and infiltration
Water generally spreads and drains differently in sandy, loamy, layered, compacted, and clay-rich soils. Test the actual wetting pattern below the surface. If water ponds or runs off before reaching the intended depth, shorter applications with soak time between them may be useful, provided the controller and crop management support that approach. If a narrow wetted column misses much of the root zone, consider additional delivery points or a different pattern.
Slope and elevation
Elevation changes affect pressure, and water can continue draining toward low points after shutdown. On sloping sites, compare operating pressure and measured output at representative high, middle, and low locations. Pressure-compensating outlets, check-valve features where documented, appropriate zoning, and carefully sized tubing may help, but they do not eliminate every slope effect.
Long runs and friction loss
Pressure falls as water moves through tubing, fittings, valves, and filters. Smaller tubing, higher flow, and longer runs generally increase friction loss. Follow current product limits for line size and run length. If the end of a run delivers less, diagnose pressure and layout rather than simply increasing the timer runtime for the whole zone. The irrigation-pressure troubleshooting guide provides the broader diagnostic framework.
Calculate outlet flow, zone demand, and approximate delivery
Start with the rated flow of each outlet:
Per-tree GPH = number of outlets per tree × rated GPH per outlet
Total zone GPH = number of operating outlets × rated GPH per outlet
For mixed outlet rates, calculate each group separately and add the groups. Divide total GPH by 60 to compare zone demand with source flow in GPM.
Orchard calculation example
Suppose a 10-tree zone uses four 1-GPH outlets per tree:
- Per-tree output = 4 outlets × 1 GPH = 4 GPH
- Total outlets = 10 trees × 4 outlets = 40 outlets
- Total zone demand = 40 outlets × 1 GPH = 40 GPH
- 40 GPH ÷ 60 = approximately 0.67 GPM
If the zone runs for 90 minutes, that is 1.5 hours:
- Approximate delivery per tree = 4 GPH × 1.5 hours = 6 gallons
- Approximate delivery across the zone = 40 GPH × 1.5 hours = 60 gallons
These figures describe approximate system output, not a universal watering prescription. Rated flow assumes the product is within its documented operating pressure range and the system has no significant clogs, leaks, or damage. Measure actual discharge from representative outlets when commissioning and troubleshooting.
Turn measured output into an observed schedule
Runtime connects system output to approximate gallons delivered, but gallons alone do not show how deeply or widely the soil was wetted. Adjust a starting program with observations of:
- Moisture within the effective root depth, not only at the surface
- Soil infiltration, runoff, ponding, and drainage
- Measured delivery at representative outlets
- Tree establishment stage, canopy development, and crop condition
- Recent weather, heat, wind, and useful rainfall
- Differences among species, varieties, rootstocks, and sites
A timer repeats the program; it does not sense every tree’s root zone. Recheck soil after an irrigation cycle and between cycles, then adjust frequency, runtime, outlet number, or zone grouping as evidence warrants. The Timers and Controllers guide covers programming choices without replacing those field checks.
Practical orchard setup sequence
- Map tree locations, ages, crop groups, soil changes, slope, elevation, exposure, source, and expected system expansion.
- Measure source flow and static and operating pressure.
- Group trees into zones that can share an outlet strategy and operating window.
- Select individual emitters, pressure-compensating emitters, emitterline, loops, or micro-sprayers by the desired wetting pattern and current specifications.
- Count every outlet, calculate per-tree output and total zone demand, and compare the zone with source and component capacity.
- Select and install appropriate backflow protection where applicable, filtration, pressure regulation, valves or timers, mainline, laterals, fittings, and flush ends.
- Flush open lines before final outlet operation, then run the zone and check for leaks, uneven output, runoff, and missed roots.
- Measure representative delivery, record the starting layout and runtime, and inspect soil moisture at useful depths.
- Revisit the layout as roots and canopies grow.
Maintenance and troubleshooting
Filter service and line flushing
Use filtration suited to the water source and the smallest outlet passage. Inspect and clean the filter according to its instructions and observed debris load. Open flush ends and clear mainline and laterals until discharge is clean. See Filters and Clog Prevention for selection and diagnostic detail.
Low or uneven pressure
Compare operating pressure and measured output at the source and representative points. Check for a dirty filter, partially closed valve, failed or mismatched regulator, excessive zone demand, long or undersized runs, elevation effects, leaks, or simultaneous water uses. Increasing runtime does not repair a pressure or flow problem.
Clogged, damaged, or moved outlets
Inspect each operating zone for blocked emitters, split tubing, loose fittings, disconnected microtubes, and outlets no longer positioned over the intended root area. Wildlife, rodents, mowing, cultivation, harvest equipment, and foot traffic can damage or move lines. Protect tubing where practical and repair with compatible fittings.
Winterization and startup
Before freezing conditions, shut off and drain the system as product instructions require. Relieve pressure and protect or remove freeze-sensitive timers, backflow devices, gauges, filters, regulators, valves, and other housings that can retain water. At startup, flush, pressurize gradually, and walk every zone before relying on the previous schedule. The drip irrigation maintenance guide includes seasonal checks.
Next steps for an orchard system
Use the broader Irrigation and Watering collection to review the available system, then narrow the list to components that fit the measured source and calculated zone. Current pathways include Filters, Pressure Regulators, Irrigation Timers, and Poly Tubing and Fittings.
The durable orchard plan is one that can be measured, inspected, and expanded. Keep the shared design framework here, and keep species-specific watering adjustments with the crop-care guidance and observations for each tree.
